Quick Patch is an instant repair pre-mix for permanent repair of pot holes, cracks, depressions on the roads, it is ideally designed to withstand extreme temperatures and heavy traffic conditions, Quick Patch cold mix consists of nominal aggregate size of 9.5mm down size. Quick Patch incorporates specialty additives that impart unique performance properties to the mix.
Features & Advantages of Quick Patch
Increased convenience and reduced cost of maintenance.
Ready for immediate use with pre-mixed aggregates (cold technology)
No heating or mixing or additions to the product before or after application
Requires simple equipments such as hand brushes, shovel and a rammer. The use of roller is not necessary
No pretreatment of repair areas is required i.e cuttingout, Use of tack coat
Instant curing / setting partly by air-drying and partly by compaction
All-weather usage product. Instant repair od roads with Quick Patch can be made in monsoons & wet conditions, extremes of heat (60° C+) and cold conditions.
Advantages & Benefits of Quick Patch
Eliminates necessity of plant & machinery at site
Very fast setting as compared to other options
After repair, the road can be immediately opened to heavy traffic reducing the traffic hold up time.
No sticking/picking-up of material by vehicle tyres
Highly stable at high pavement temperatures
Highly resistant to stripping by water
Offers high skid resistance
Leads to no raveling, no bleeding, no depression / permanent deformation
No wastage of material
Minimum unskilled labour required
Long service life of the repaired potholes
No pollution during maintenance
How to Use Quick Patch
Comes in convenient ready to use packing of 50kg net HDPE bags with inside LDPE liner

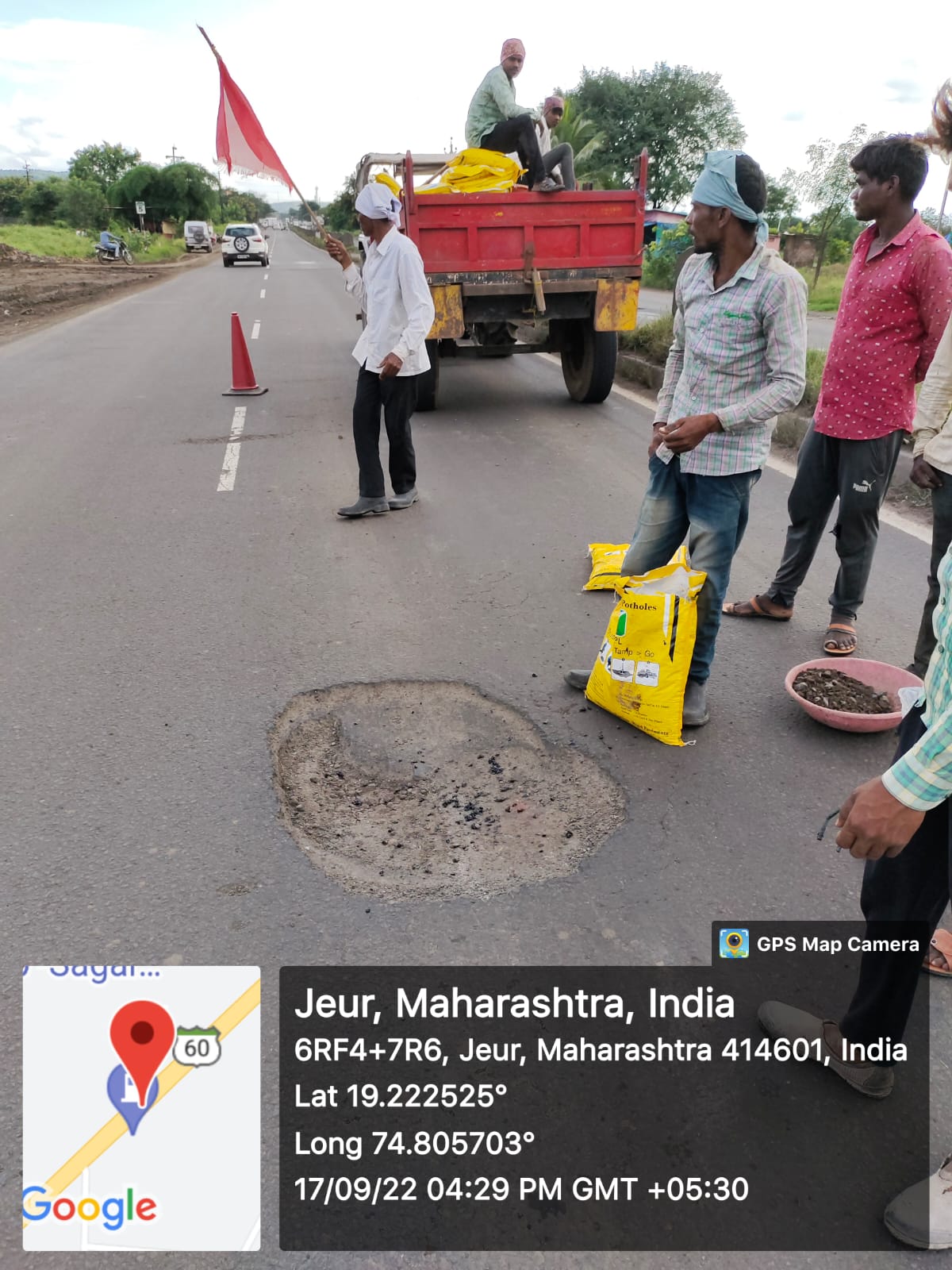

Preparation prior to repair is minimal. For optimum results, remove standing water/loose debris/dust with a brush from the pothole. However, where this proved impossible, repairs have always remained in excellent condition

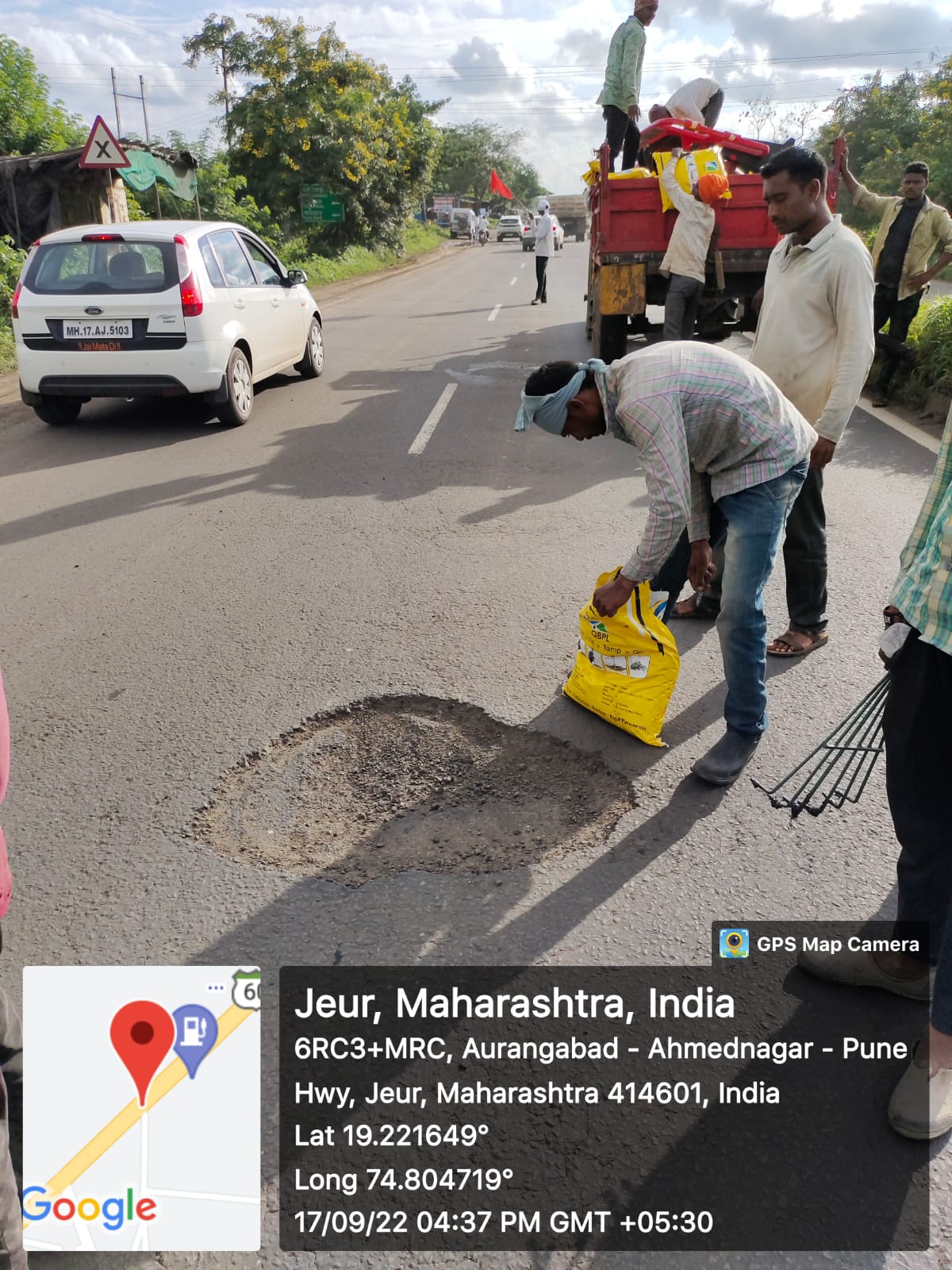

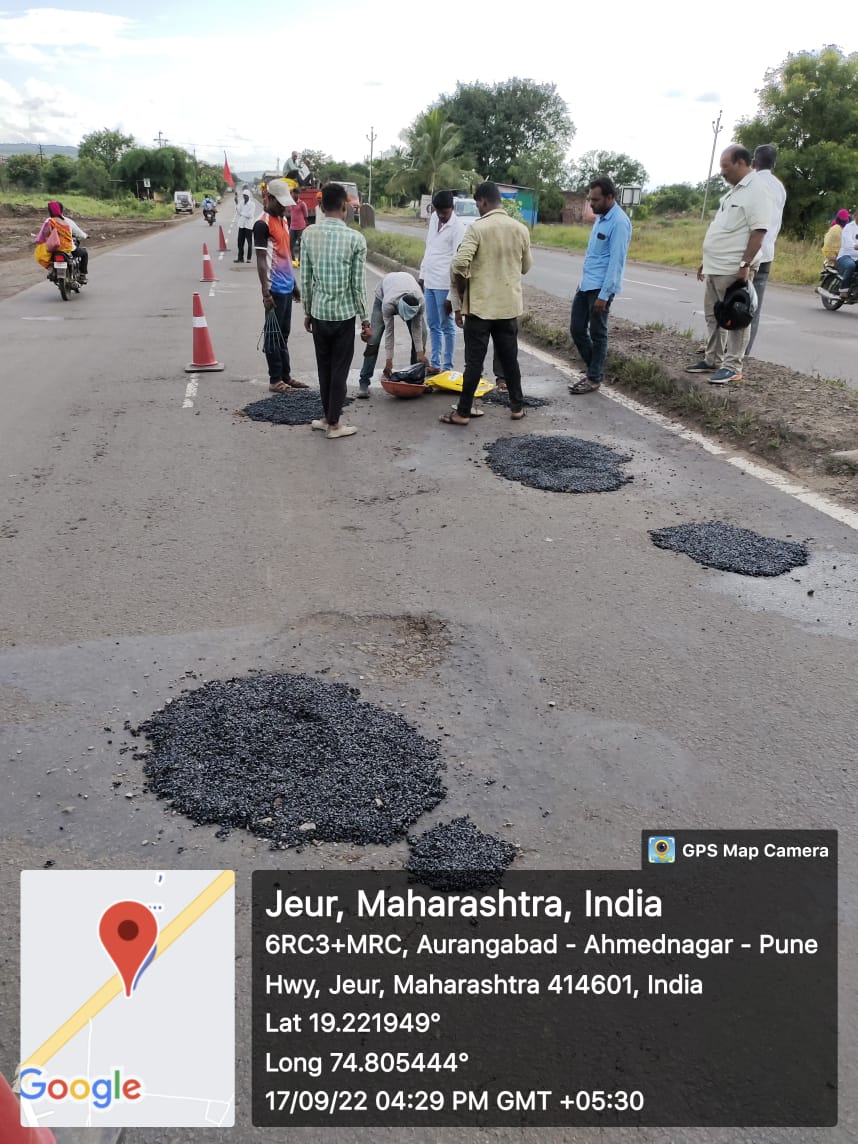

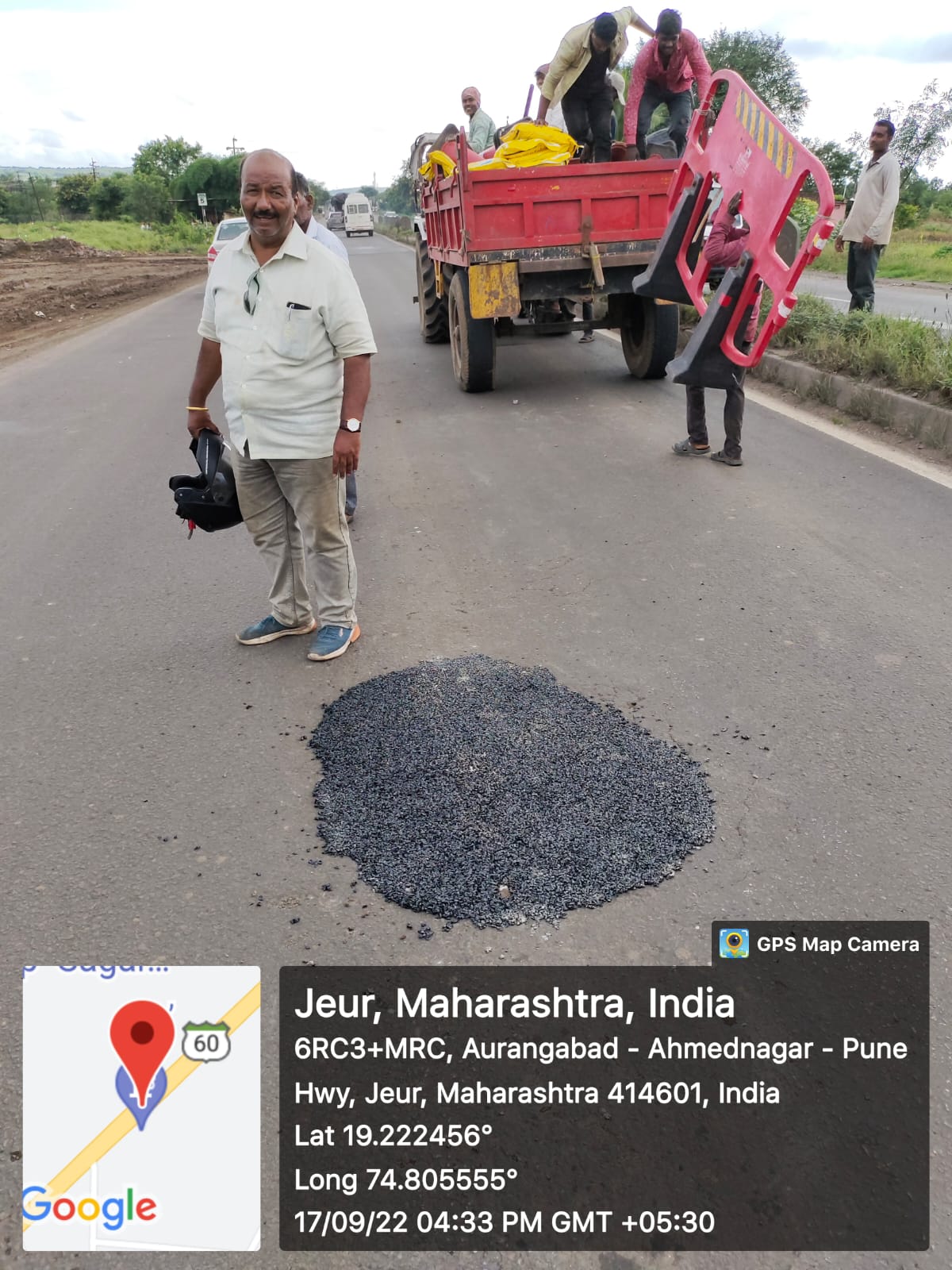

Pour Quick Patch directly from the bag into the pothole and overfill by 10mm
Where deep potholes are to be repaired, it is economical to first compact approximately 10mm Quick Patch across bottom of pothole, then fill remaining cavity with 6/10 mm metal chips well compacted and then top with 25mm of Quick Patch as a final course
Compaction can be done using a simple hand rammer. for large repairs, using a roller shall ensure smooth/even compaction. Do not use plate compactor
Cures instantly and compacts further with traffic
Open to traffic immediately since it does not stick to tyres
Quick Patch Usage Areas
In making cost comparison between Quick Patch and conventional hot and cold patch materials, it is a mistake to simply compare tonne for tonne. It is necessary to make on overall comparison taking into account equipment involved (jack hammer, compressor, truck, roller, traffic lights) wastage of material, man hours, durability of repairs, and traffic hole ups. Only then can accurate cost assessment be reached.
It has been shown that a substantial cost saving can be achieved using Quick Patch in preference to conventional methods.
